KHGK Caliper type pipe-pipe argon arc welding machine

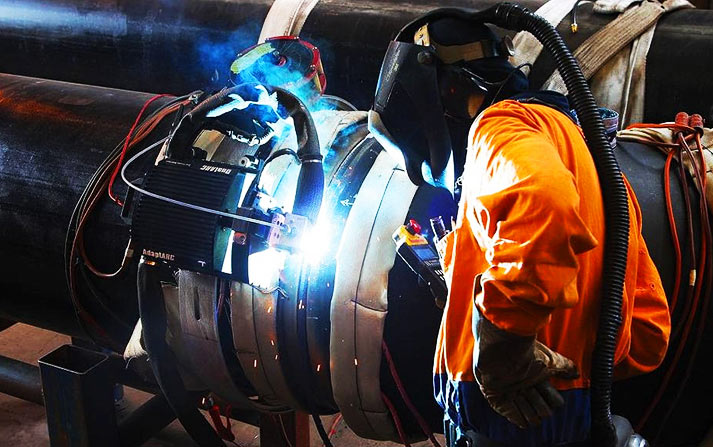

The KHPP Magnetic Type Orbital Pipe Welding Machine is a customized machine, which is used for fabricated tube orbital welding projects – the pipe is fixed, welding carriage do all-position welding around the tube with the efficiency-cost MIG welding process. Suiting for large sizes tube Diameter≥140mm (≥5 inch), thickness 4 – 60mm.
Application:
Parameter:
The KHPP Magnetic Type Orbital Welder is a customized machine, which is used for fabricated tube orbital welding projects – the pipe is fixed, welding carriage do all-position welding around the tube with the efficiency-cost MIG welding process. Suiting for large sizes tube Diameter≥140mm (≥5 inch), thickness 4 – 60mm.
KHPP could solve the issue of operator error in gas tungsten arc welding(GMAW/MIG/MAG).
KHPP is composed of the power supply with integrated computer control and the welding head.
Features
1.To solve the issue of operator error in GMAW / MIG / MAG. PLC-controlled process runs with little intervention from the operator.
2.Magnetic Type carriage – can run around the tubes for doing all-position welding work.
3.OSC/AVC functions – with oscillation OSC and arc voltage control AVC.
4.To guarantee high quality repeatable welding. a successful programming monitors variables and performs periodic samples during its test welding. LCD touch screen, easy to input.
5.Intelligent welding . 100 successful programming stored in PLC, just pick one.
6.High productivity. 2-3 times higher than conventional MIG welding.
7.10 hours continuous welding. qualified welding torch and power and water cooling system make it.
8.Car-integrated design, freedom of movement.
9.Small space of scientific design.
