KHGT pipe to pipe butt welding machine

KHGT pipe to pipe butt welding machine

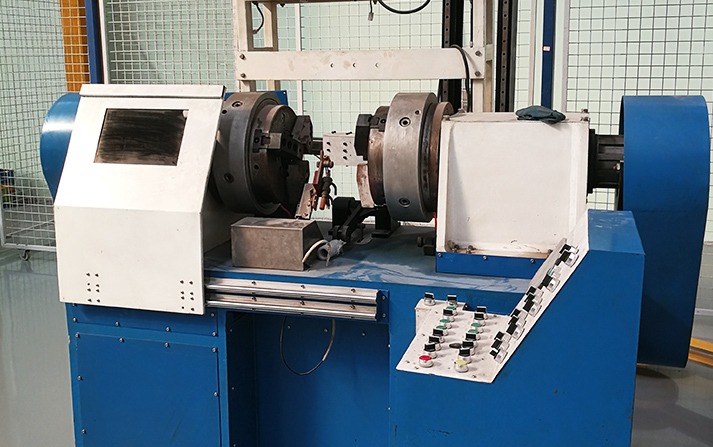

KHGT desktop type automatic orbital welding machine is specialized for straight tube butt welding work with or without wire filling automatically(pipeline fabrication, pipeline producing). According to different needs, can be used for tube to tube, tube to sealing cap, tube to flange, and so on, according to the different thickness requirements, we can use different ways, such as cold welding wire, hot wire TIG welding TIG welding or TIG welding way. + MIG.

Application:

Petrochemical, boiler, refrigeration, medicine, aviation, pressure vessel, ship, food machinery, atomic energy, etc.

Advantage

Suitable tube sizes: Normally 19 – 80mm
Suitable material: carbon steel, stainless steel, alloy steel, and so on.
KHGT have OSC/AVC functions – with oscillation OSC and arc voltage control AVC.
KHGT could solve the issue of operator error in gas tungsten arc welding(GTAW/TIG).
KHGT is composed of the power supply,control system,cooling system, wire feeding system, and the welding head working station.

KHGT can rotate freely infinite at any angle of 360°.

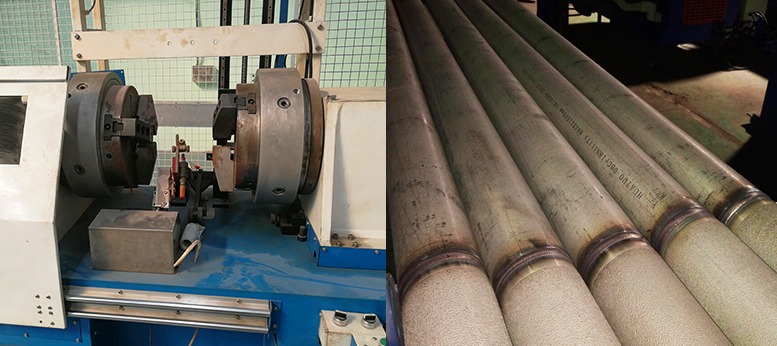

KHGT is widely adopted in pipeline fabrication, pipeline producing.
Driving and wire adopts reliable stepping motors.
Suitable for various kinds of pipe – pipe joint way, and various groove form
Starting main components are used aviation materials, light weight, size stability, and high temperature deformation
24 hours continuous welding- Welding torch using forced circulation water cooling, can work long hours. Mandatory water cooling system, equipped with 16 liters stainless steel water tank, not affected by field water hydraulic conditions of limits, cooling fully, reliable convenient.
Intelligent welding- PLC control system and LCD touch human-machine interface, can be stored up to 100 groups of welding programs, each group of welding scope can divide 1-2 section, input is simple, do not need professional basis and specialized welding knowledge.

Parameter

Welding head working station

ModelKHGT-T-C-80KHGT-T-H-80KHGT-T-M-80
Welding methodcold wire TIGhot wire TIG(as option)TIG+MIG(as option)
Tube diameter19-80mm19-80mm19-80mm
Normal tube thickness1.5-8mm1.5-15mm3-15mm
Welding speed0.1-5rpm
80-150mm/min		0.1-5rpm
250-400mm/min		0.1-5rp
250-400mm/min
Wire feeding speed0-3000mm/min0-8000mm/minTIG:0-3000mm/min
MIG:0-15000 mm/min
Wire diameter0.8,1.0,1.2mm0.8,1.0,1.2mm0.8,1.0,1.2mm
Adjustable angle＜90°＜90°＜90°

Swinging function

Biggest swing range10mm10mm10mm
Swing speeds0.5-10mm/s0.5-10mm/s0.5-10mm/s
Around retention time0.1-10s0.1-10s0.1-10s
Swing frequency0-5HZ0-5HZ0-5HZ

Automatic arc length control

Arc length adjustment speed2.5mm/s2.5mm/s2.5mm/s

Power source and control system

Rated input voltage380V±10%   3 phases,  50/60Hz
Rated input capacity13.9KVA
Rated power input13.2kw
Voltage allows range±10%
Load sustained rate   400A    60%
250A    100%
Rated load voltage25V
Rated voltage no-load70V
Welding current adjusting range4-400A
Current rise time0.1-25S
Preheating time0.1-25S
Current decrease time0.1-25S
Pulse frequency0.5-500HZ
Argon gas flow8-12L/min
Built-in memory space100 groups of welding programs
Each set can be segmented number1-12 section
Cooling voltage1.2kgf/mm
