Fully Caged Goods Lift

As a Heavy Duty Goods Lift supplier, we provide fully caged goods lifts designed to transport various production materials, machines, vehicles, pallets, or forklifts between different floors. Our lifts are ideal for use in commercial buildings, garages, warehouses, factory plants, industrial spaces, retail stores, racking systems, restaurants, mezzanines, and shopping centers.
With a load capacity ranging from 1 ton to 50 tons, our fully caged goods lifts are available in various table sizes to suit your specific needs. They can operate across up to 6 stops and reach heights of up to 30 meters, ensuring safe and efficient vertical transportation. Choose us as your trusted Heavy Duty Goods Lift supplier for reliable and customizable lifting solutions.
Fully Caged Goods Lift Application
Fully caged goods lift is widely used in indoor or outdoor places of the buildings and warehouses to lift goods or pallets between floors.






Standard Features
✅ Wire mesh enclosure
✅ 4post design
✅ Standard Max. 2000kgs loading capacity
✅ Upper and lower landing limits
✅ Upper safety limit
✅ 24V DC safety control circuit
✅ Outwards opening railings with interlock*1.2M height

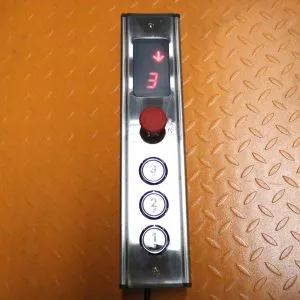

✅ Digital control panel on each landing stop
✅ Manual lower down valve when power off
✅ Explosive-proof valve
✅ 4-5m/min. Lifting speed, down speed adjustable
✅ 200-250mm minimum pit
✅ 5 year warranty on main structural components (indoor use)
✅ 1 year warranty electrical components
Model List
MODEL | CAPACITY | PLATFORM SIZE W*D | LIFTING HEIGHT | PIT W*L*D | MOTOR POWER | POWER SUPPLY V |
---|---|---|---|---|---|---|
MIE2-3 | 2000KG | 2000X2000MM | 3000MM | 2650*2160*300MM | 4KW | 220/240/380/415 |
MIE2-5 | 2000KG | 2000X2000MM | 5000MM | 2650*2160*300MM | 4KW | 220/240/380/415 |
MIE2-7 | 2000KG | 2000X2000MM | 7000MM | 2650*2160*300MM | 4KW | 220/240/380/415 |
MIE2-9 | 2000KG | 2000X2000MM | 9000MM | 2650*2160*300MM | 4KW | 220/240/380/415 |
MIE3-3 | 3000KG | 2000X3000MM | 3000MM | 2650*2160*300MM | 4KW | 220/240/380/415 |
MIE3-5 | 3000KG | 2000X3000MM | 5000MM | 2650*2160*300MM | 4KW | 220/240/380/415 |
MIE3-7 | 3000KG | 2000X3000MM | 7000MM | 2650*2160*300MM | 4KW | 220/240/380/415 |
MIE3-9 | 3000KG | 2000X3000MM | 9000MM | 2650*2160*300MM | 4KW | 220/240/380/415 |
MIE5-3 | 5000KG | 3000X3000MM | 3000MM | 2700X2160X350MM | 5.5KW | 220/240/380/415 |
MIE5-5 | 5000KG | 3000X3000MM | 5000MM | 2700X2160X350MM | 5.5KW | 220/240/380/415 |
MIE5-7 | 5000KG | 3000X3000MM | 7000MM | 2700X2160X350MM | 5.5KW | 220/240/380/415 |
MIE5-9 | 5000KG | 3000X3000MM | 9000MM | 2700X2160X350MM | 5.5KW | 220/240/380/415 |
FOR REFERENCE CHOICE ONLY, CUSTOMIZE AVAILABLE PER LOADING CAPACITY, PLATFORM SIZE AND TRAVEL HEIGHT |
