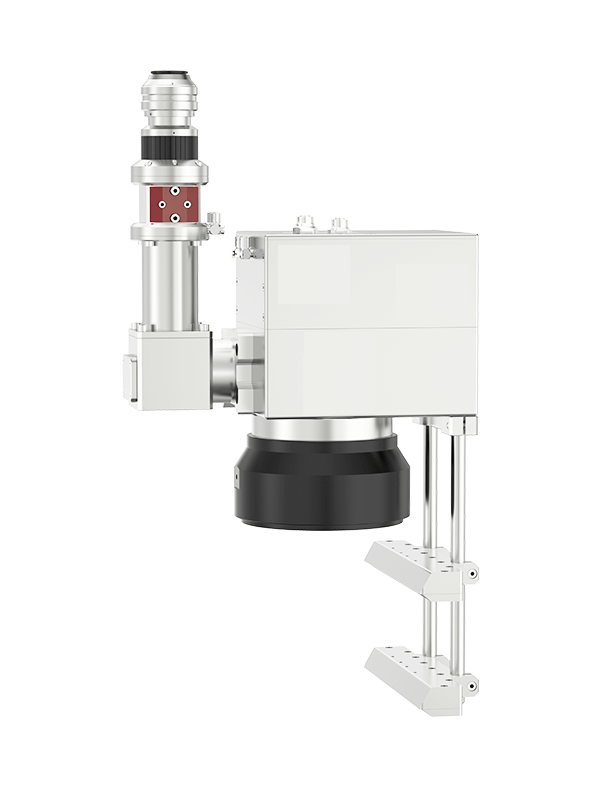

Fiber laser galvanometer welding head LSDW300

Applicable power/Rated Power

3000W

  • Adapt to QBH interface

  • The collimator and the galvanometer are integrated into one, with a compact structure

  • Dual independent cables to improve product anti-interference performance

  • Full optical and body water cooling to ensure welding stability

Product parameters

Interface type: QBHSwing range: 100*100mm / 120*120mm
Applicable wavelength: 1080nmSwing speed: 4000mm/s
Rated power: ≤3KWBlowing method: air knife assembly
Collimation focus: 100mmAuxiliary air pressure: ≤1Mpa
Focusing focal length: 255mm/350mmWeight: 9KG (excluding field lens)
