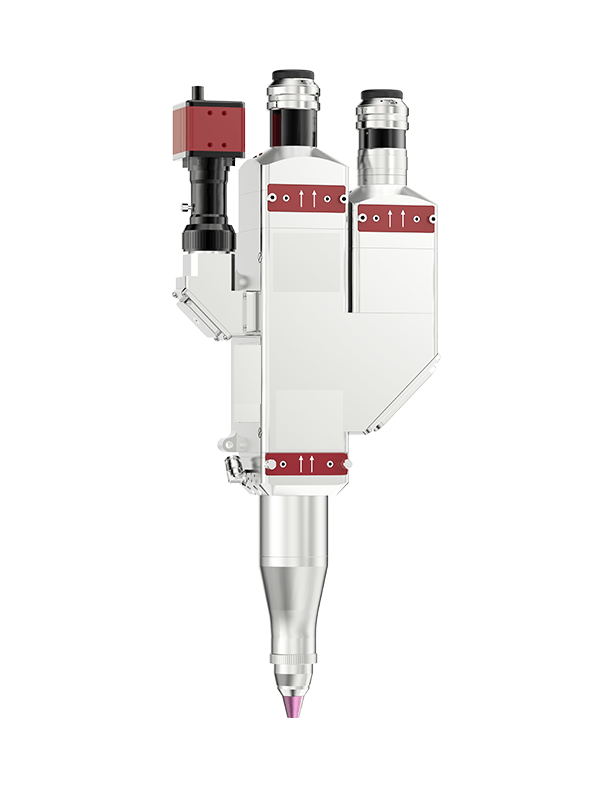

Dual-band composite welding head LW421

Applicable power/Rated Power

4000W/6000W

  • Adapt to QBH interface

  • Equipped with CCD camera module

  •          Combining the respective advantages of optical fiber and semiconductor, it improves the weld yield and the aesthetics of the weld plane when welding high-reflective materials, medium and thick plate stainless steel and other materials.

  • Semiconductor laser preheats the material, and fiber laser performs deep strength processing on the material

Product parameters

Applicable wavelength1080nm+915nm
Semiconductor Collimation and Focusing100mm
Semiconductor Focus150mm/200mm/250mm/300mm
Fiber collimation focal length100mm/150mm/200mm
Fiber focusing focal length150mm/200mm/250mm/300mm
Vertical adjustment range±4mm
Effective light diameter46mm
Overall weight7.2KG
