Cargo Lift Supplier for Industrial and Heavy-Duty Lifting Solutions
A cargo lift is no longer just a lifting platform it is a critical component of modern material handling systems, enabling efficient vertical transportation of goods across multiple levels. As a trusted cargo lift supplier, we design and manufacture high-performance lifting solutions that meet the operational demands of warehouses, factories, commercial buildings, and logistics environments.
Our cargo lifts are engineered to handle heavy loads, continuous operations, and harsh industrial conditions, ensuring reliability, safety, and long-term performance. From compact goods lifts for retail use to high-capacity industrial lifting platforms, we deliver fully customized solutions aligned with your facility layout and workflow.
What is a Cargo Lift and Why is it Important?
A cargo lift, also known as a goods lift, freight elevator, or hydraulic cargo lift, is a mechanical or hydraulic system used to move materials vertically between floors. It reduces manual handling, improves productivity, and enhances workplace safety.
Key Advantages:
- Reduces dependency on manual labor
- Minimizes risk of workplace injuries
- Increases operational efficiency and speed
- Enables safe transport of heavy and bulky items
- Optimizes space utilization in multi-level facilities
In industries where time and efficiency are critical, installing a cargo lift directly contributes to cost savings and productivity growth.
Industrial Applications of Cargo Lifts
Cargo lifts are widely adopted across sectors due to their flexibility and scalability.
Core Industry Use Cases:
- Warehousing and Logistics: Movement of pallets, cartons, and inventory between storage levels
- Manufacturing Units: Handling raw materials, finished goods, and heavy machinery
- Automobile Industry: Lifting vehicles and components in garages and service stations
- Retail and Commercial Spaces: Stock movement in supermarkets and shopping malls
- Food and Hospitality: Service lifts for kitchens, hotels, and restaurants
- Construction and Infrastructure: Material lifting at building sites
- Cold Storage and Pharma Units: Controlled environment material handling
These applications highlight the role of cargo lifts in improving supply chain efficiency and operational workflow.

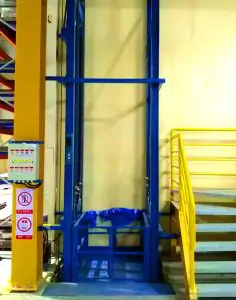

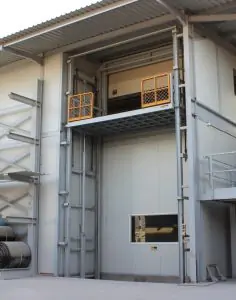

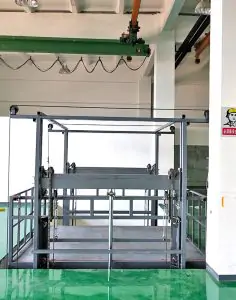

CARGO LIFT APPLICATION
Cargo lift is widely used in indoor or outdoor places of the buildings and warehouses to lift goods or pallets between floors.
Cargo Lift Model Specifications
Standard Model Range
MODEL | CAPACITY | PLATFORM SIZE W*D | LIFTING HEIGHT | PIT W*L*D | MOTOR POWER | POWER SUPPLY V |
|---|---|---|---|---|---|---|
MIEH2-3 | 2000KG | 2000X2000MM | 3000MM | 2650*2160*300MM | 4KW | 220/240/380/415 |
MIEH2-5 | 2000KG | 2000X2000MM | 5000MM | 2650*2160*300MM | 4KW | 220/240/380/415 |
MIEH2-7 | 2000KG | 2000X2000MM | 7000MM | 2650*2160*300MM | 4KW | 220/240/380/415 |
MIEH2-9 | 2000KG | 2000X2000MM | 9000MM | 2650*2160*300MM | 4KW | 220/240/380/415 |
MIEH3-3 | 3000KG | 2000X3000MM | 3000MM | 2650*3160*300MM | 4KW | 220/240/380/415 |
MIEH3-5 | 3000KG | 2000X3000MM | 5000MM | 2650*3160*300MM | 4KW | 220/240/380/415 |
MIEH3-7 | 3000KG | 2000X3000MM | 7000MM | 2650*3160*300MM | 4KW | 220/240/380/415 |
MIEH3-9 | 3000KG | 2000X3000MM | 9000MM | 2650*3160*300MM | 4KW | 220/240/380/415 |
MIEH5-3 | 5000KG | 3000X3000MM | 3000MM | 3700X3160X350MM | 5.5KW | 220/240/380/415 |
MIEH5-5 | 5000KG | 3000X3000MM | 5000MM | 3700X3160X350MM | 5.5KW | 220/240/380/415 |
MIEH5-7 | 5000KG | 3000X3000MM | 7000MM | 3700X3160X350MM | 5.5KW | 220/240/380/415 |
MIEH5-9 | 5000KG | 3000X3000MM | 9000MM | 3700X3160X350MM | 5.5KW | 220/240/380/415 |
STANDARD FEATURES
✅ Outwards opening railings with interlock*1.2M height
✅ Digital control panel on each landing stop
✅ Manual lower down valve when power off
✅ Explosive-proof valve
✅ 4-5m/min. Lifting speed, down speed adjustable
✅ 200-250mm minimum pit
✅ 5 year warranty on main structural components (indoor use)
✅ 1 year warranty electrical components
OPTIONAL FEATURES
✅ Overload warning device
✅ Fixed access ramp(for pit-less application)
✅ 2M railing and gate on platform (cabin)
✅ Motor station protection box
✅ Semi height on floor or fully caged
✅ enclosure wire mesh protections
✅ Electrical roller shutter landing doors
How to Choose the Right Cargo Lift
Selecting the right cargo lift depends on multiple operational factors.
Key Buying Considerations:
- Load capacity and type of materials
- Required lifting height and number of stops
- Available installation space
- Indoor or outdoor usage conditions
- Frequency of use and duty cycle
- Safety and compliance requirements
- Budget and long-term maintenance cost
Choosing the right configuration ensures maximum efficiency and ROI.
Benefits of Installing a Cargo Lift
- Improves productivity and workflow efficiency
- Reduces manual labor and operational risks
- Enables faster material movement
- Enhances workplace safety standards
- Supports scalable business operations
- Provides long-term cost savings
A well-designed cargo lift system becomes a strategic asset for any industrial setup.
Frequently Asked Questions
Ques: What is the difference between a cargo lift and a freight elevator?
Ans: A cargo lift is typically hydraulic and designed for industrial use with heavy loads, while a freight elevator may include advanced automation and is often used in commercial buildings.
Ques: What industries benefit the most from cargo lifts?
Ans: Industries such as manufacturing, logistics, retail, automotive, and warehousing benefit significantly from cargo lift installations.
Ques: Can cargo lifts be installed outdoors?
Ans: Yes, cargo lifts can be designed with weatherproof structures, anti-corrosion coatings, and enclosed systems for outdoor installation.
Ques: What is the lifespan of a cargo lift?
Ans: With proper maintenance, a cargo lift can last 10–20 years or more, depending on usage and environmental conditions.
Ques: Is a machine room required for cargo lifts?
Ans: Not always. Many modern hydraulic cargo lifts are available in machine-room-less configurations.
Ques: How much space is required to install a cargo lift?
Ans: Space requirements depend on platform size, lifting height, and pit depth. Compact and pit-less options are also available.
Ques: Are cargo lifts customizable for specific industries?
Ans: Yes, cargo lifts can be fully customized for specific applications such as cold storage, automobile lifting, or high-capacity industrial use.
Ques: What safety features should a cargo lift have?
Ans: Essential features include overload protection, emergency stop, interlocking doors, anti-fall systems, and hydraulic safety valves.
Ques: How often should cargo lifts be serviced?
Ans: Regular maintenance is recommended every 3–6 months to ensure optimal performance and safety.
Ques: What power supply is required for cargo lifts?
Ans: Most cargo lifts operate on 220V, 240V, 380V, or 415V depending on the region and system configuration.
